Features

Material
Porcelain tiles
Tile Thickness
12–20 mm
Fixation Type
Invisible fixation
Tile Preparation
Edge groove (3–5 cm along tile width)
Fixing System
Concealed stainless steel 316 clamps (1.5 mm) + aluminum substructure
Substructure Profiles
L- and T-shaped vertical aluminum rails
Tile Orientation
Vertical or horizontal
Tile Compatibility
Pre-grooved tiles or grooved on-site using slotting machine
Recommended Joint
5 mm

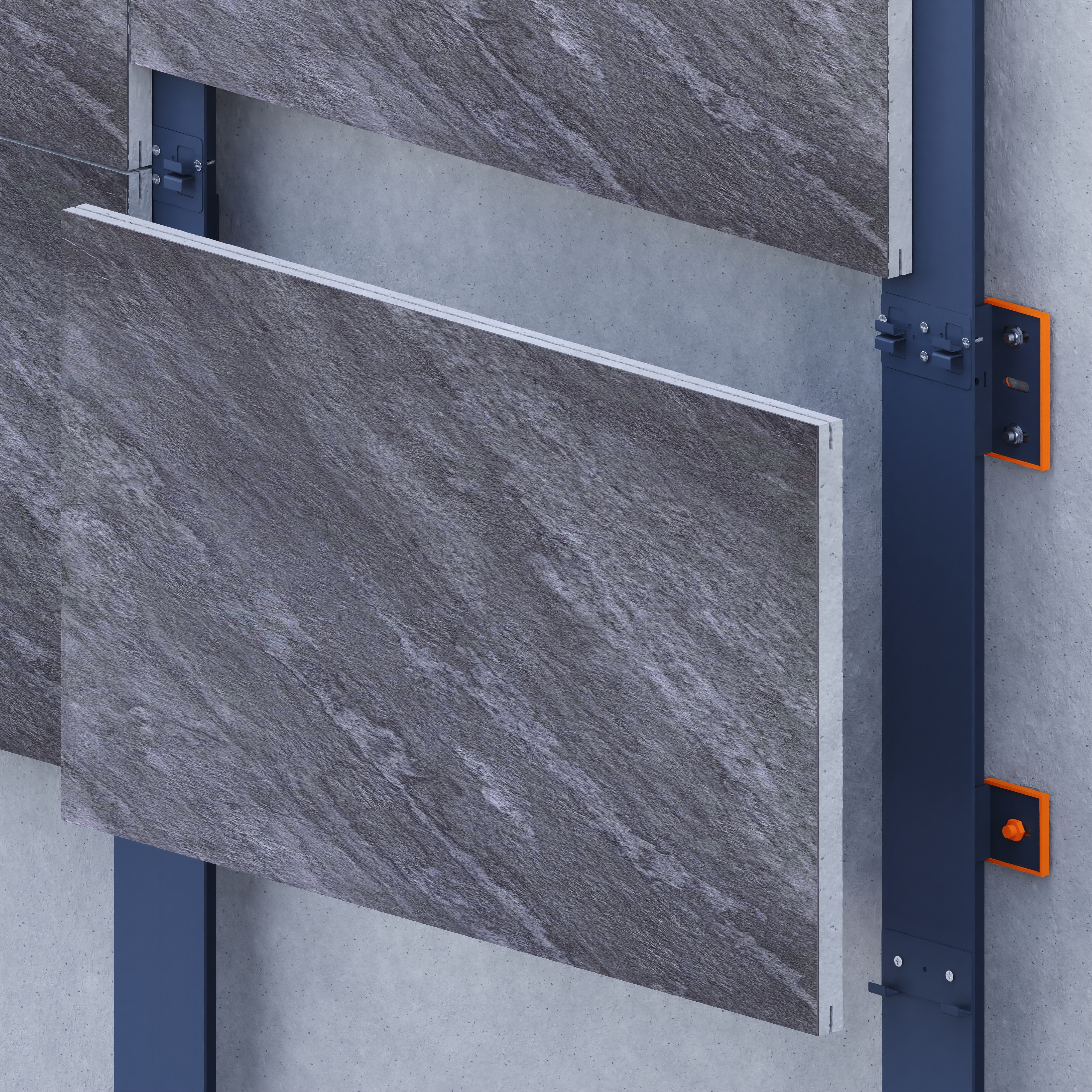

Invisible Clamp system

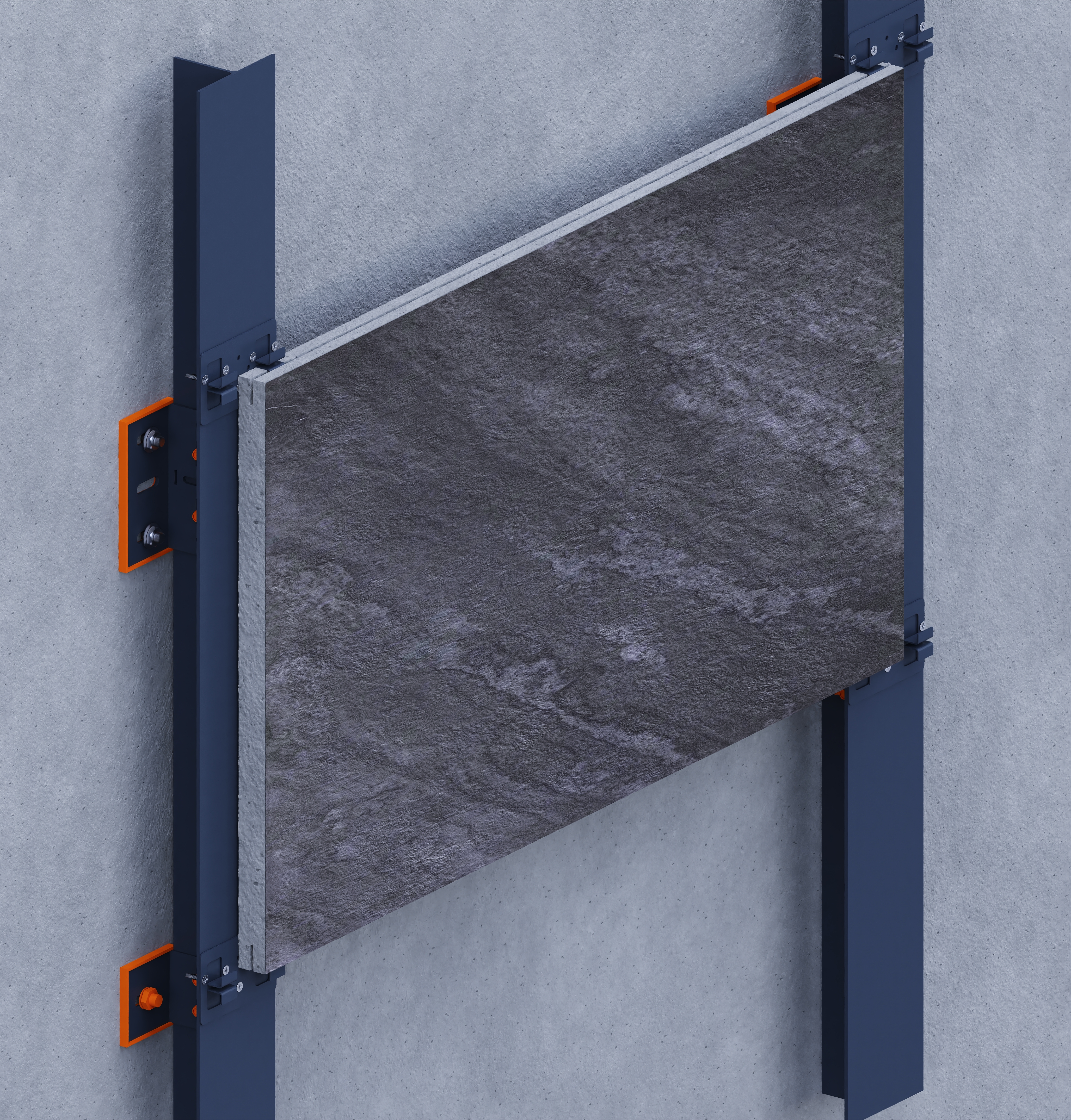

This concealed fixing method delivers a clean, hardware-free façade finish for 12–20 mm porcelain tiles and slabs. Tiles are prepared with a 3–5 cm edge groove to receive stainless steel 316 clips, which anchor to an aluminum substructure for secure installation.Compatible with both vertical and horizontal layouts, the system works with pre-grooved tiles or those prepared on-site using a slotting machine. It ensures structural reliability while maintaining a minimalist appearance—ideal for modern ventilated façades using porcelain surfaces.

Download Catalog

Performance Characteristics

Designed for porcelain tiles and slabs with a thickness range of 12 to 20 mm
Uses concealed stainless steel 316 clamps (1.5 mm thick) for a sleek, uninterrupted façade finish
Grooved-edge installation ensures secure mechanical fixing with no visible hardware
Compatible with both pre-slotted tiles and on-site edge grooving using a dedicated machine
Supports tile's vertical and horizontal orientations for flexible design applications
Mounts to adjustable aluminum substructures using L-, T-, or custom-profile rails
Clip spacing and bracket layout are optimized based on wind load and structural requirements
Enables modular design and allows on-site cutting of tiles for non-standard dimensions
Maintains consistent 5 mm joints for visual uniformity and effective drainage
Accommodates thermal movement and resists pressure from dynamic loads
Quick and clean installation with self-drilling screws; no adhesives or sealants required
Durable and low maintenance, ideal for long-term exterior performance

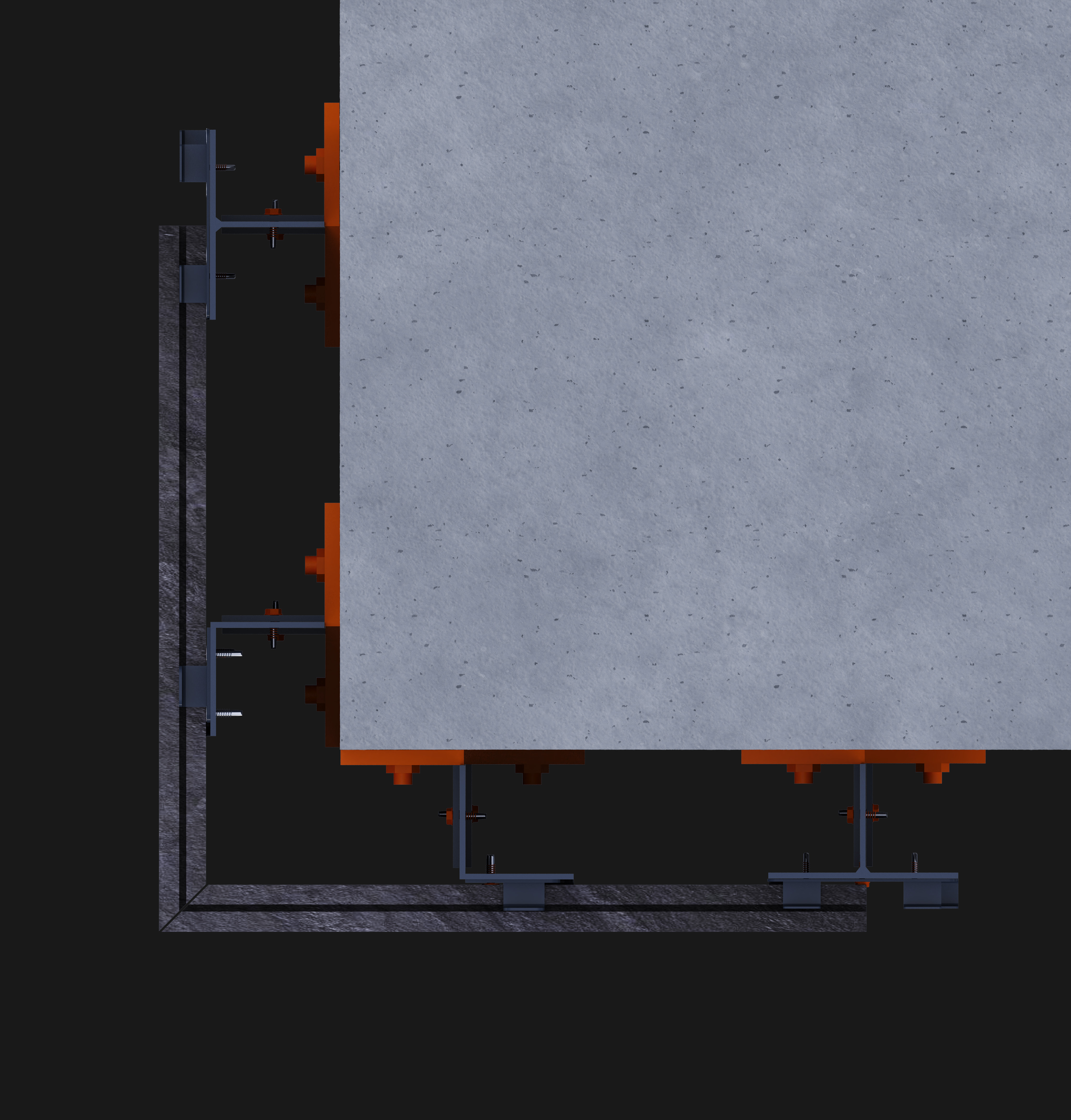

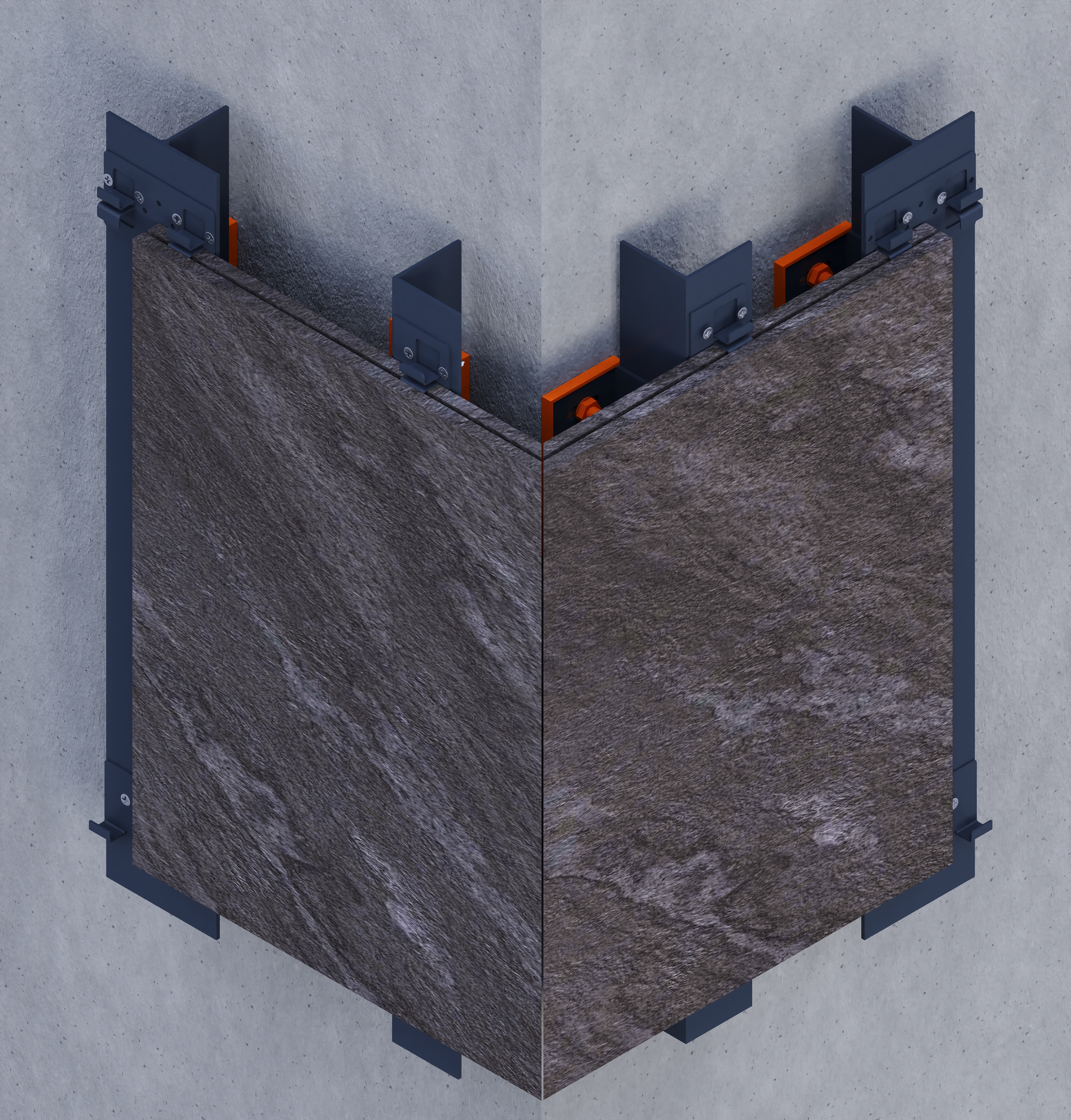

Component Breakdown

1- Aluminum Brackets: Support vertical loads and define cavity depth
2- Vertical Profiles (T & L): Form the secondary substructure; carry clips and align tiles across the façade.

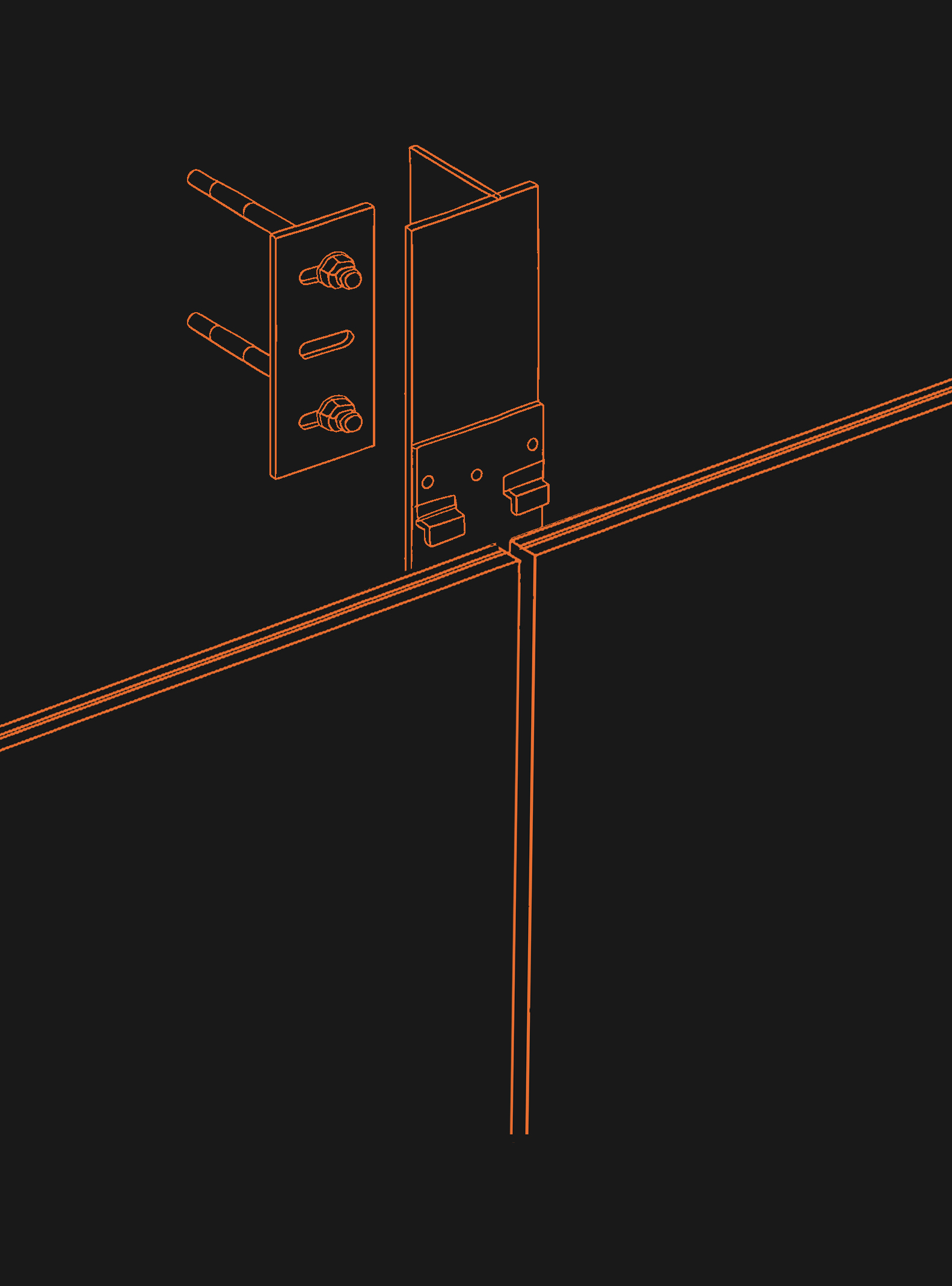

3- Concealed Fixing Clamps: Stainless steel 316, 1.5 mm thick; lock into tile grooves for hidden mechanical anchoring.
4- Mechanical Anchors: Fix the aluminum framework securely to concrete or masonry substrates.
5- Self-Drilling Screws: Used for quick, reliable attachment of clamps and profiles—no pre-drilling needed.
6- Thermal Breaks: Isolating pads between brackets and wall to reduce thermal bridging and prevent corrosion.
7- Edge Grooving Tools: Available for on-site preparation of tile grooves when pre-slotted tiles aren’t used.
8- Porcelain Panels: Compatible with 12–20 mm thick tiles or slabs; install vertically or horizontally.
