Features
  • Material
    Extruded porcelain tiles
  • Tile Thickness
    20 mm
  • Fixation Type
    Invisible fixation
  • Tile Preparation
    Factory-formed edge groove (full-width across the tile)
  • Fixing System
    Concealed stainless steel 316 clamp (1.5 mm) + aluminum substructure
  • Substructure Profiles
    L- and T-shaped vertical aluminum rails
  • Tile Orientation
    Vertical or horizontal
  • Tile Compatibility
    Pre-grooved extruded tiles
  • Recommended Joint Width
    5 mm

Extruded Porcelain Clamp System

This invisible mechanical fixing system provides a concealed installation method for 20 mm extruded porcelain tiles in ventilated façades. Each tile features a factory-formed edge groove for concealed stainless steel clamps, which are anchored to a vertical aluminum substructure. The result is a seamless surface with no visible fasteners.Compatible with both vertical and horizontal layouts, the system allows for easy tile replacement without disturbing surrounding panels—ideal for commercial and residential projects requiring durability, clean aesthetics, and installation efficiency.

Download Catalog
Performance Characteristics
  • Berghe icon Designed for 20 mm extruded porcelain tiles with factory-integrated edge grooves
  • Berghe icon Full-width groove provides consistent clamp engagement and optimal structural hold
  • Berghe icon Pre-grooved panels reduce on-site labor and cutting waste
  • Berghe icon Invisible clamps made from stainless steel 316, 1.5 mm thick
  • Berghe icon Substructure composed of L- and T-shaped vertical aluminum profiles
  • Berghe icon Supports tile's vertical and horizontal layouts based on architectural design
  • Berghe icon Modular configuration allows for custom panel sizing and on-site cutting
  • Berghe icon 5 mm joint spacing ensures clean lines, drainage, and expansion tolerance
  • Berghe icon Allows for easy panel removal and replacement
  • Berghe icon Dry installation — no adhesives, mortars, or curing required
  • Berghe icon System tested and compliant with international façade performance standards
  • Berghe icon Engineered to accommodate thermal movement and wind loads

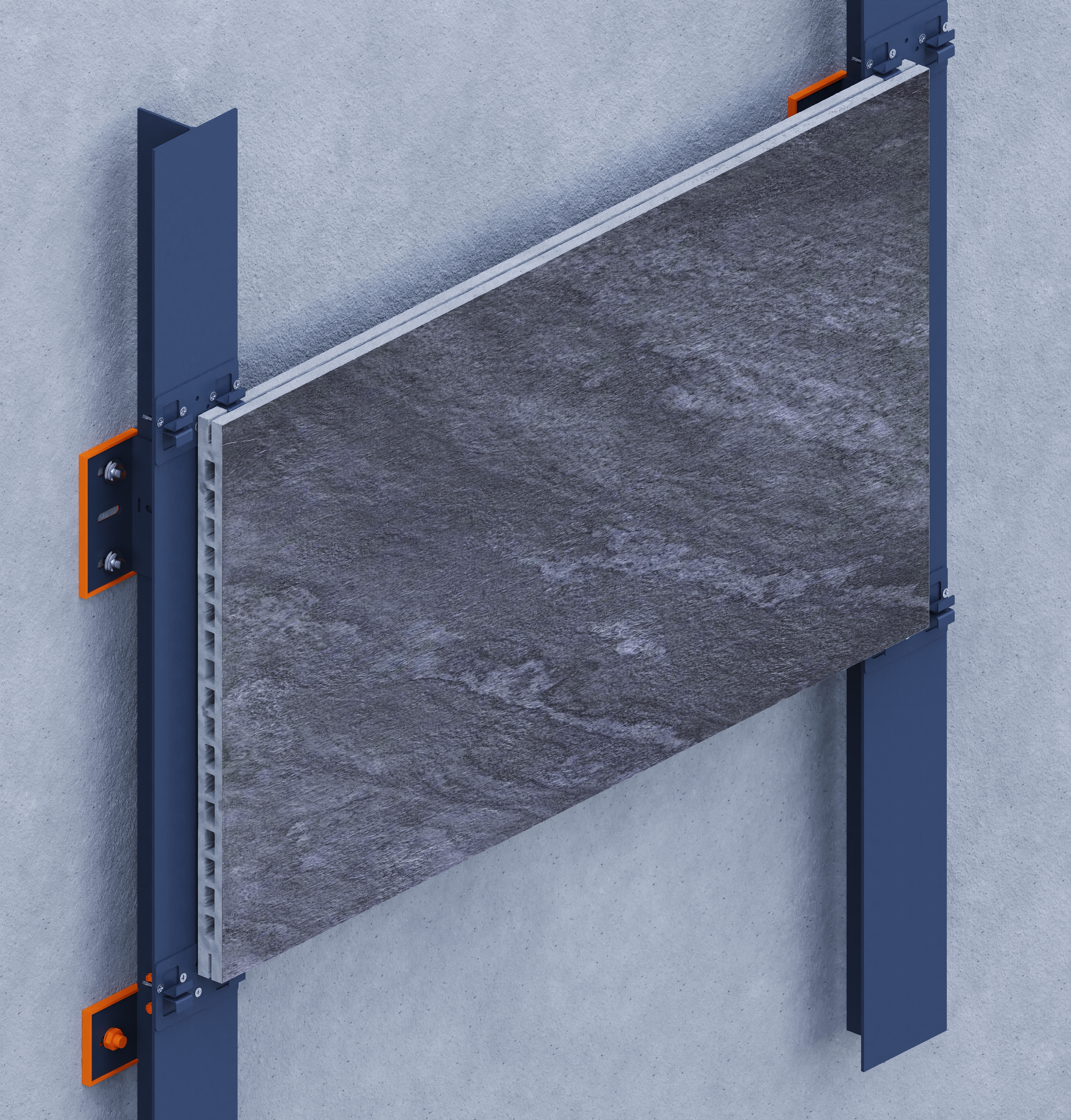

Clamp with extrude tiles

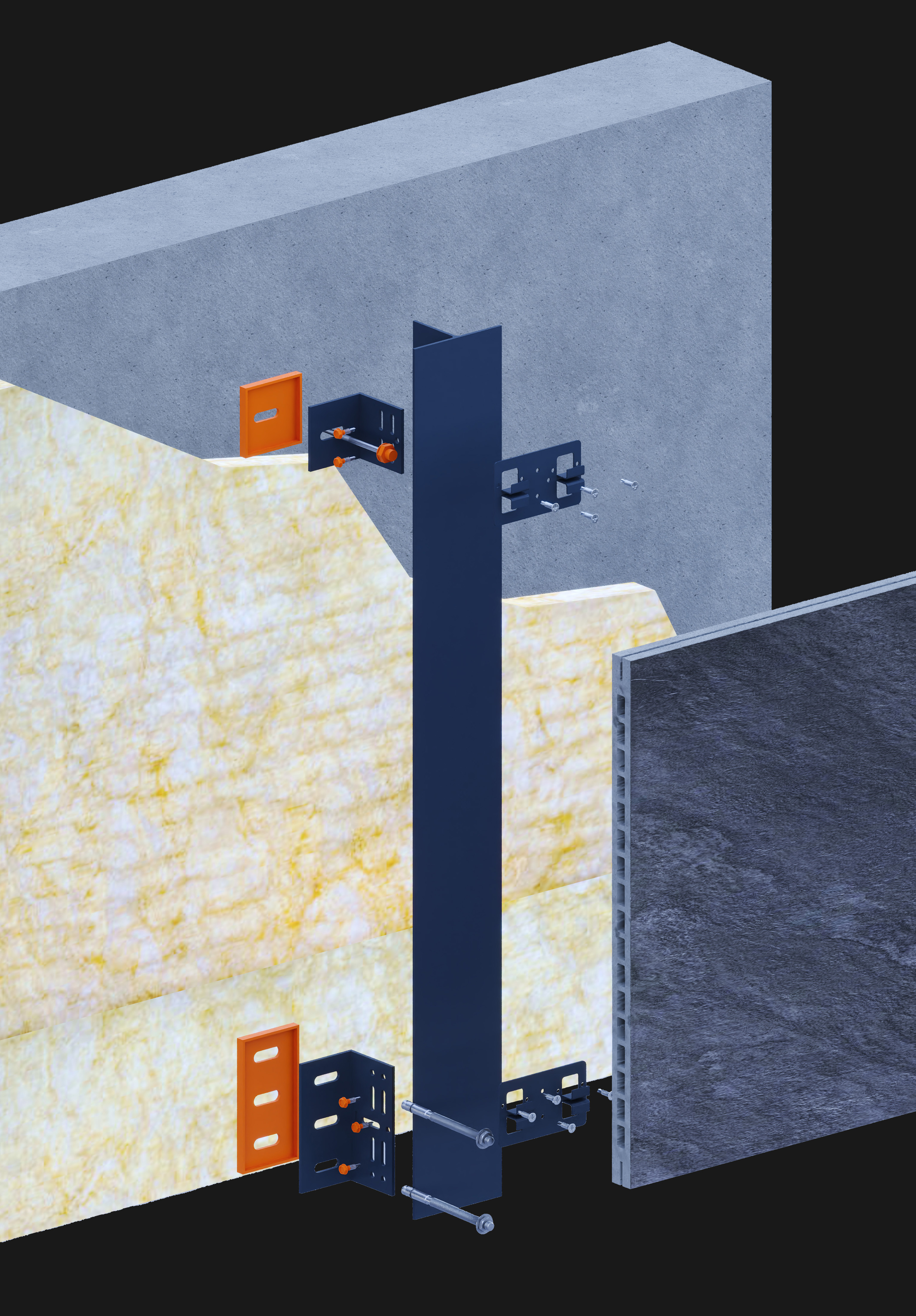

2 Extruded Porcelain Clamp System image 4
Component Breakdown
  • 1- Concrete or Framed Support Wall: Substrate for anchoring the façade system (not supplied)
  • 2- Waterproofing Sheet: Protects structural wall from moisture infiltration (not supplied)
  • 3- Thermal Insulation: Enhances energy efficiency of the envelope (not supplied
  • 4- Mechanical Anchors: Secure aluminum brackets to the substrate (concrete, masonry, or steel)
  • 5- Thermal Break Pads: Prevent thermal bridging and galvanic reactions at bracket connections
  • 6- Stainless Steel Self-Drilling Screws: Used to secure clamps and aluminum profiles with precision
  • 7- Aluminum Brackets (L shaped): Define cavity depth and transfer loads to the structure
  • 8- Vertical Aluminum Profiles: T- and L-shaped vertical rails for fixing clamps and tile alignment
  • 9- Concealed Fixing Clamps: Made from stainless steel 316, 1.5 mm thick; hidden within tile groove
  • 10- Extruded Porcelain Tiles: 20 mm thick; supplied with full-width factory-formed edge grooves

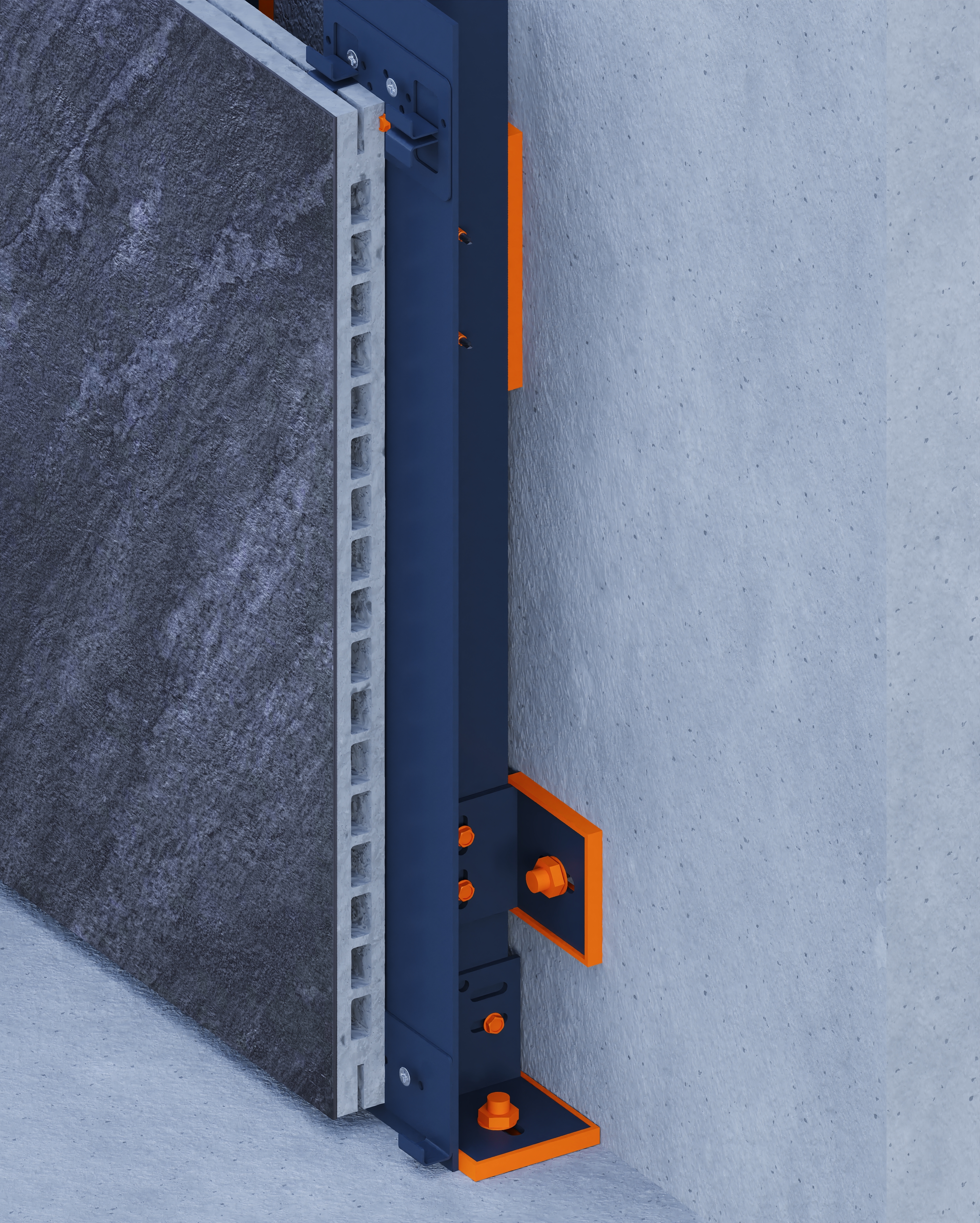

Installation Details

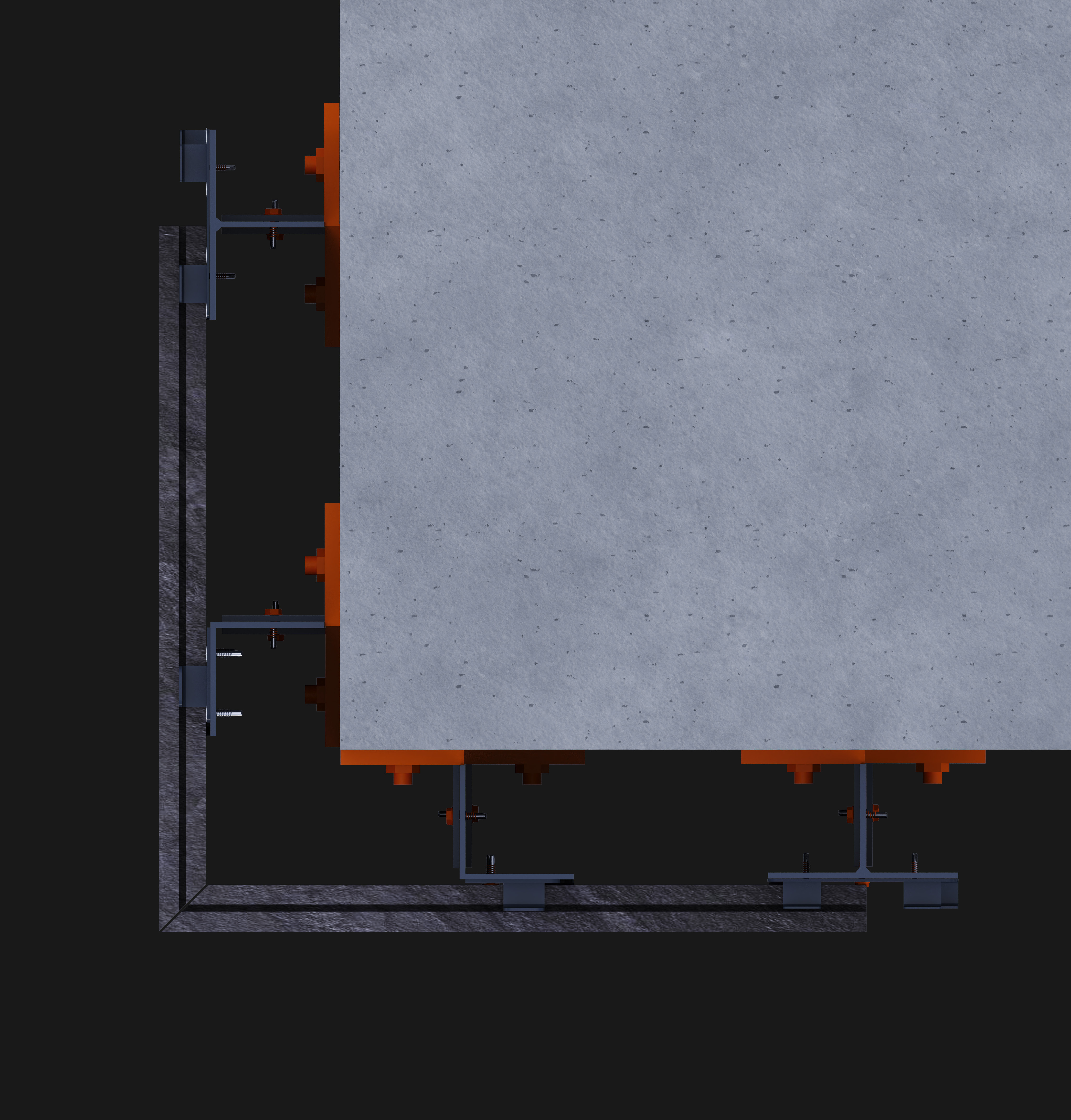

Corner Detail
